Truck air brake adjustment in Morgantown, WV addresses excessive applied pushrod stroke, brake chamber travel, slack adjuster concerns, and other foundation-brake conditions affecting adjustment.
Commercial air brake adjustment should begin by establishing whether applied pushrod travel actually exceeds the limit for the brake chamber involved. An out-of-adjustment condition describes excessive stroke, but it does not automatically identify the slack adjuster as the failed component or prove that a simple adjustment will correct the brake.
Free movement at the pushrod and applied brake-chamber stroke are also different measurements. A brake can appear to have limited free play while still exceeding its applicable stroke limit when the service brake is applied, which is why the actual chamber configuration and applied measurement matter.
Brake stroke adjustment cannot be judged against one universal measurement for every commercial wheel end. Chamber size and stroke design affect the allowable travel, so the brake chamber has to be identified before the measured pushrod stroke can be evaluated against the appropriate limit.
Different brake-chamber sizes have different allowable stroke limits, making chamber identification necessary before deciding whether measured pushrod travel is excessive.
A standard-stroke chamber uses the applicable limit assigned to its size and configuration when service-brake pushrod movement is evaluated.
A long-stroke chamber allows different pushrod travel and must be distinguished from a standard-stroke design before its measurement is interpreted.

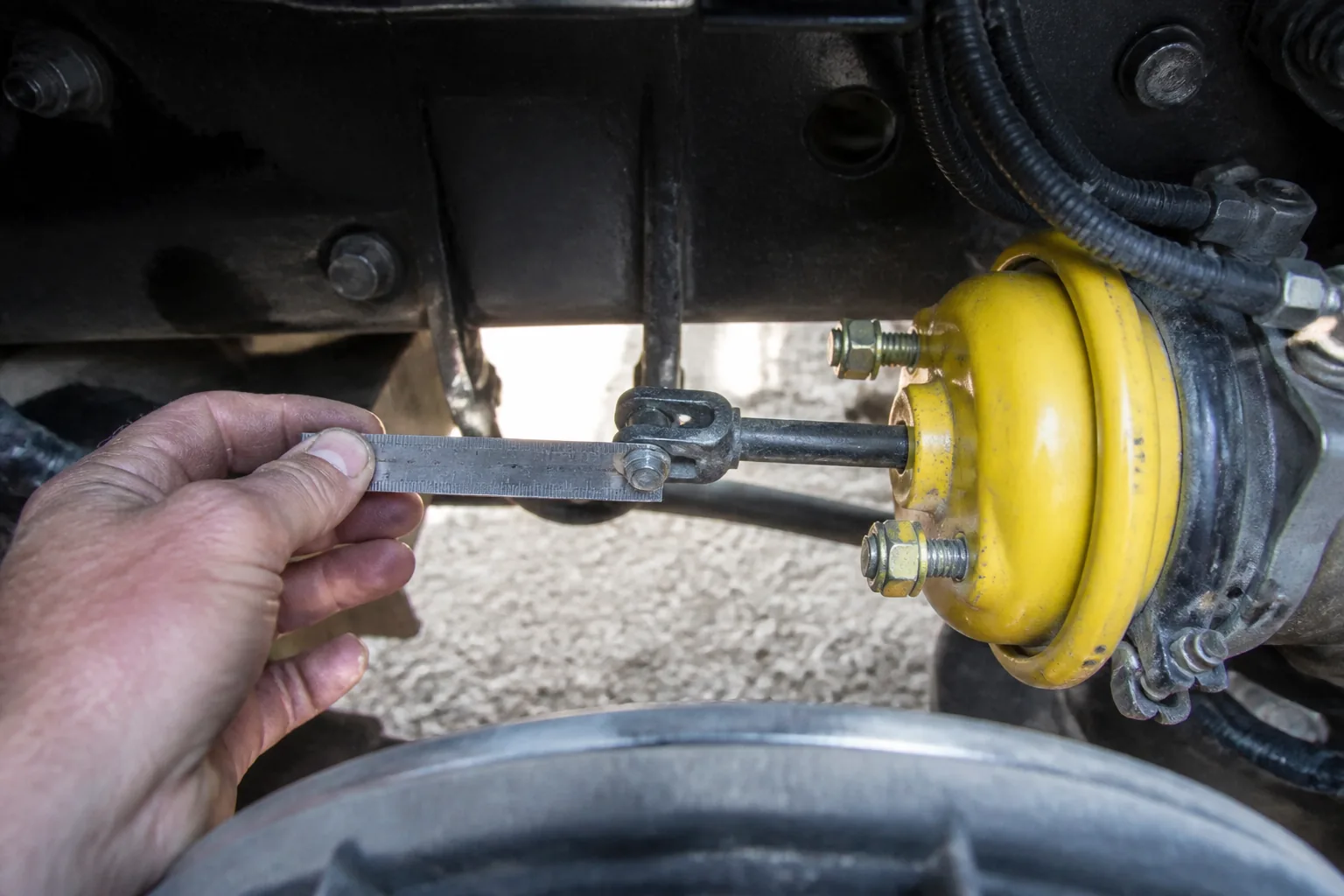

The meaningful measurement is pushrod travel during proper service-brake application rather than only the free movement that can be observed manually.
Mountaineer Truck & Tire Repair approaches mobile brake adjustment by establishing the chamber type and applied-stroke condition before treating the slack adjuster as the source of the problem. A measured condition should guide the repair path instead of assuming that every brake concern needs the same mechanical correction.
The evaluation then moves toward the surrounding foundation brake. Adjuster condition, clevis movement, S-cam hardware, lining, drum clearance, mounting, and related components can all affect how far the chamber pushrod must travel before full brake application occurs.
Determine the chamber size and stroke design so the measured pushrod travel can be compared with the correct limit for that wheel end.
Applied pushrod travel establishes whether the foundation brake actually exceeds the allowable adjustment limit during normal service-brake application.
When stroke is excessive, the adjuster, linkage, drum, lining, mounting, and other foundation-brake parts become relevant to finding the cause.
Truck air brake adjustment in Morgantown, WV should address why the applied stroke became excessive rather than assuming the slack adjuster only needs to be repositioned. Lost movement, worn friction parts, changed brake geometry, or adjuster problems can each increase how far the chamber pushrod must travel. If worn friction material is part of the condition, replace brake shoes through the component-specific brake service.
Wear or lost motion around the automatic adjuster, clevis connection, or related linkage can interfere with the brake's ability to maintain proper stroke.
Worn S-cam bushings, rollers, or related foundation hardware can consume mechanical movement before the brake shoes fully contact the drum.
Worn friction material or increased drum clearance can require greater component movement before normal shoe-to-drum contact develops during brake application.
Loose, worn, cracked, or displaced brake hardware can alter foundation-brake geometry and contribute to excessive chamber pushrod travel at the wheel end.
The appropriate available service addresses the reported problem.
If stroke exceeds the limit, inspect the adjuster and foundation-brake components responsible for maintaining correct operating geometry.
Evaluate pushrod travel under service-brake application against the appropriate chamber limit rather than relying on free movement alone.
Determine the chamber size and whether the brake uses a standard- or long-stroke configuration before selecting the applicable adjustment limit.
Semi truck air brake adjustment should be based on applied pushrod stroke compared with the allowable limit for the brake chamber involved. Brake feel or visible slack alone does not establish the condition. Chamber size and stroke design matter because different configurations have different allowable pushrod travel.
No. Free stroke or pushrod slack describes movement before full brake application, while applied pushrod stroke measures how far the chamber pushrod travels when the service brake is applied. A short amount of free movement does not automatically prove that applied stroke remains within the allowable limit.
Repeated excessive stroke can involve more than the adjuster itself. Clevis wear, S-cam bushings, rollers, brake lining, drum condition, mounting hardware, or other foundation-brake geometry can affect travel. A recurring condition should therefore be traced to the component preventing the self-adjusting system from maintaining proper stroke.
Manual repositioning can temporarily reduce measured stroke without correcting the reason a self-adjusting brake exceeded its limit. If the condition keeps returning, the foundation brake should be evaluated for adjuster, linkage, friction, drum, mounting, or other problems rather than treating repeated manual adjustment as the permanent repair.
Worn brake lining can increase running clearance and contribute to greater pushrod travel, but it is only one possible cause. Drum wear, automatic-adjuster condition, clevis movement, S-cam hardware, rollers, or mounting problems can also influence stroke, so commercial truck brake adjustment should consider the complete wheel-end condition.
For roadside air brake adjustment, share the tractor or trailer position, affected wheel end, measured pushrod stroke if known, and whether the concern came from an inspection or a recurring adjustment problem. If the truck has a broader mechanical roadside problem beyond brake stroke, get mobile truck repair.
Correct excessive brake stroke by identifying the foundation-brake condition responsible for the measured travel.
